Product Details

Features:

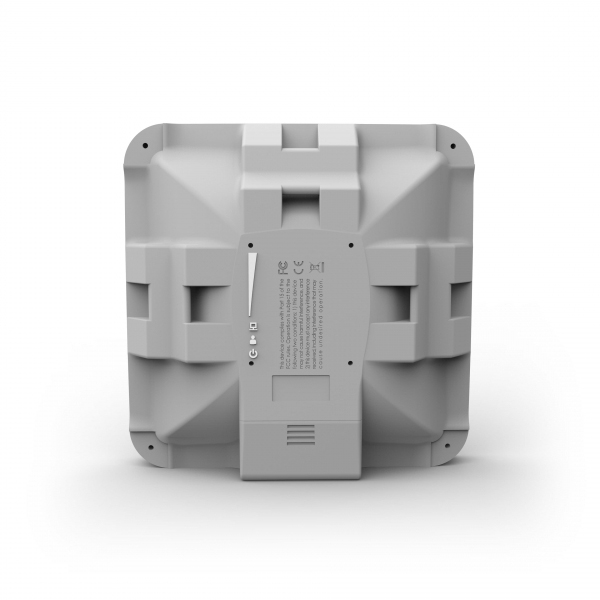

The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced – the SXTsq is two times thinner.

The weatherproof enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings. There is also an easily accessible grounding connection to protect it against lightning.

Specification:

Product code: RBSXTsqG-5acD
CPU: IPQ-4018, 4 cores, nominal frequency 716 MHz
Size of RAM: 256 MB
Storage: 16 MB Flash
10/100/1000 Ethernet ports: 1
Wireless bands: 5 GHz radio
Wireless regulations: Specific frequency range may be limited by country regulations
Operating frequency: 5150 – 5875 MHz
Protocols: 802.11a/n/ac
Chains: 2
Antenna gain: 16 dBi
Antenna beam width: 23°
Wireless chip model: IPQ-4018
PoE in: Yes
Supported input voltage: 10 V – 30 V, passive PoE
Ingress protection: IP55
Dimensions: 129 x 129 x 34 mm; package: 255 x 180 x 45 mm
Weight Unit: 295 g; package: 492 g
Operating temperature: -40 to 70° C
Operating System: RouterOS (License level 3)
Max Power consumption: 7 W
